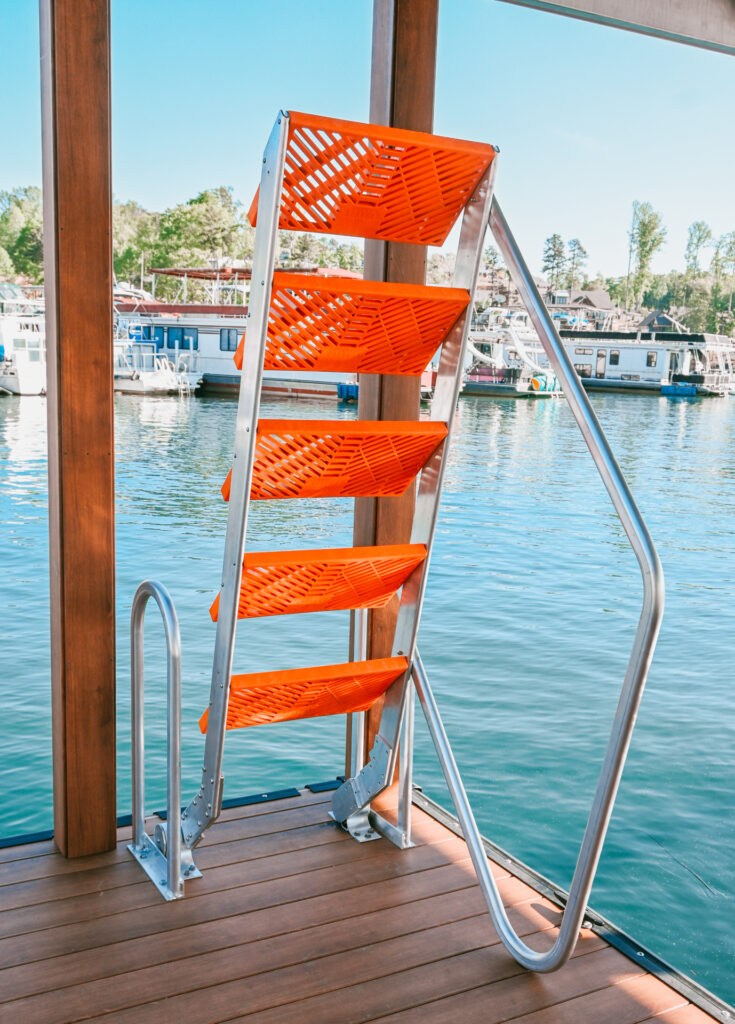

-32”wide from outside of dock handrails
– Ladder width of 27 ½”
– Tread depth of11 3/4”with1 3/8”of overlap
– Riser height of9 1/2”

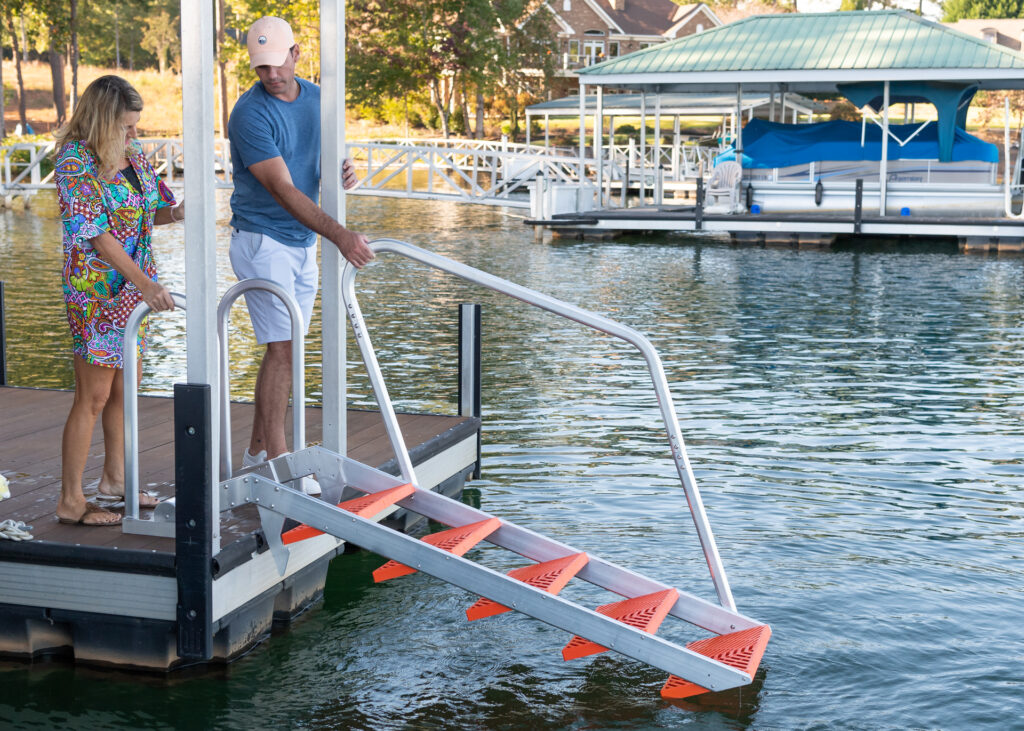

5-Step Version:
-86”tall at the peak of its rotation
– Bottom step is 44 3/8”below the deck height6
6-Step Version:
-101”tall at the peak of its rotation
– Bottom step is 53 7/8”below the deck height
HOW MANY STEPS DO I NEED?
Measure the distance from the top of your dock to the water line.
?-5 Step:Less than19”
6 Step:19”and greater
– Step size:30” x 8”(width x depth)
– Overall bracket width: approx. 34”
– Hoop dimension: 32” x 20”
– Overall horizontal dimension deployed: 52”
– Step adjustment up to 2’ below deck level, in 4” increments
– Kayak Version: Hoop dimension: 32” x 20”
– Canoe Version: Hoop dimension: 40” x 28”
– Winch post: 3” x 3” x 36” height
–35” width to support longer water toys such as paddle boards, kayaks, canoes, floating pads, etc.
–39.125” from the hanging point to the floor for a shorter reach to grab handles
–17.25” inside dimension “U-Hook” is wide enough to accomodate water toys such as tubes, floats, etc.
